Full Servo High Speed Baby Diaper Machinery For Multi Diaper Sizes XXL / XL / L / M / S / NB
| Item | Raw materials |
| 1 | Hydrophilic NW (Topsheet) |
| 2 | Hydrophobic NW (Legcuff) |
| 3 | Elastic for Legcuff |
| 4 | ADL |
| 5 | Fluff pulp |
| 6 | SAP |
| 7 | Upper tissue/NW |
| 8 | Lower tissue/NW |
| 9 | PE film |
| 10 | NW for laminating |
| 11 | Frontal tape |
| 12 | NW for S cut |
| 13 | Hook for S cut |
| 14 | Glue for S cut |
| 15 | NW for big waistband |
| 16 | Elastic for big waistband |
| 17 | Construction glue |
| 18 | Elastic glue |
| 19 | Wetness indicator glue |
Diaper Structure:
1. Topsheet
2. Hook
3. Leakcuff
4. Elastic Waist
5. Backsheet
6. Frontal tap
Process:
1. The machine can produce four sizes (NB / S / M / L/ XL / XXL) baby products by changing cutting tools and gear box
2. High speed teeth-like crusher can take treated and untread pulp.
3. Full servo control machine is totally driven by servo motors without shafts transmission.
4. Mitsubishi/Siemens PLC centralized control
5. Automatic splicing material without stopping the machine, so the working speed is guaranteed.
6. Automatically detect and reject defective products and trim remove.
7. Automatically stop the machine when material is broken or used out.
8. Human machine interface is controlled by touch screen.
9. Safety protective door.
10. All electric components are famous international brand.
11. All cutter assembly & machine body are CNC processing
12. In the frontal and back side of the machine, there is emergency stop line which is able to stop the machine at any place in emergency.
Lab Test:
Haina Machinery has its own professional lab room, for each machine, when debug the machine before customers come to trial, engineers will forward the finished diaper to lab personnel, they will test each index strictly according to standard data. Find out where need to improve, and finally finish the debugging very well.
Quality Control:

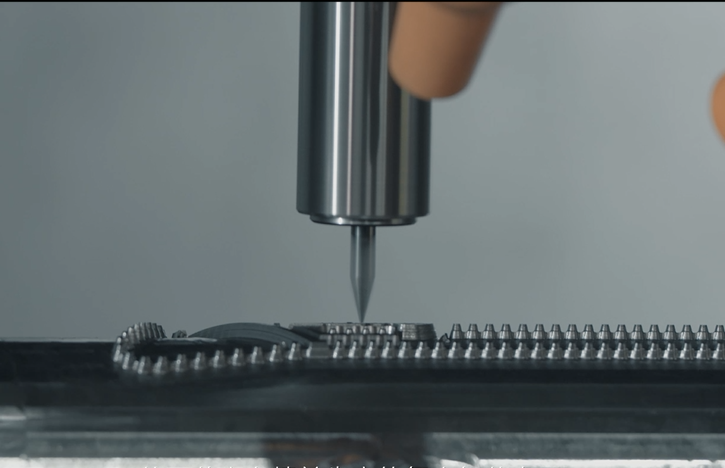

Each machine part, HAINA has strict and standard test procedure, each step is carried out according to quality manual instruction, if not meet the test standard, unqualified, will be repaired. Alll qualified parts will be lasered Haina model on it.
Main Part Suppliers:
| NAME BRAND | BRAND(Can be Customized) |
| Servo motors & drivers, Unwinding Inverters Interface, control system | MITSUBISHI / SIEMENS, Customized |
| Motors | Teco motor, Taiwan |
| Web guiders | BST / FIFE |
| Photo sensor | SICK, Germany |
| Temp. unit | OMRON, Japan |
| Lower electric part | Schneider, France |
| Solid relay | OMRON, Japan |
| Pneumatic parts(cylinders, values, air jointers) | FESTO, Germany |
| Main Bearing | NTN & NSK, Japan |
| Time belts | Gates, USA |
| Convey belts | European Brand |
Haina has many renowned suppliers from oversea and domestic market. We have established long-term partnership with them, also get customers' great satisfaction.
We can provide full aspects after-sales service :
• You can send technician to our factory to learn to operate the machine before 1 month from the machine delivery. We can offer food and accommodation.
• When machine arrives in your factory, we will send technicians to your factory to install, test the machine and train your workers.
• If you need one Chinese technician to work long time for you, we well know some good operators, who are well experienced, and are well recognized by other customers.
We will introduce them to you, you can select one.
Haina team is always here ready for serving you very well. Our customers are very also satisfied with our service, and built long-term cooperation relationship.
